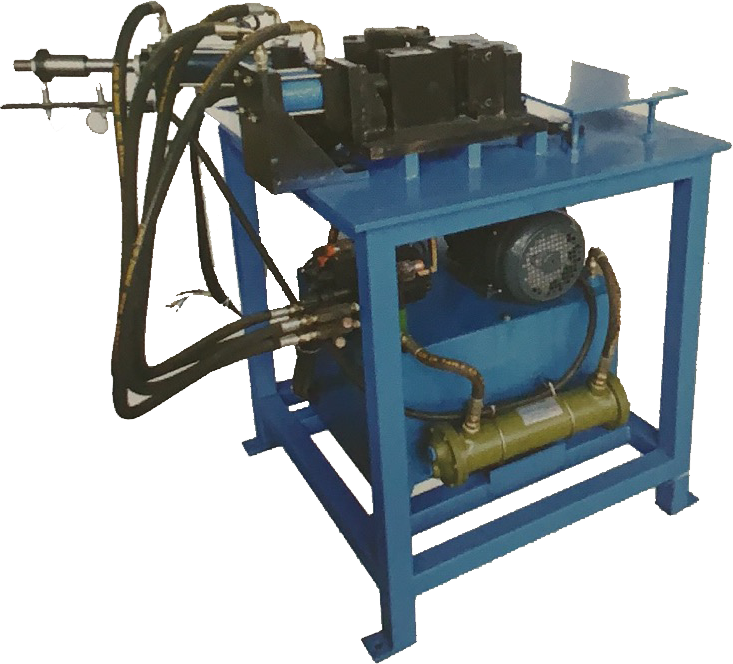

The 90-degree single-ended pipe bender is mainly made for special pipes, such as the ones with longer, shorter 90° bending position and larger pipe diameter, which cannot bend double-ended pipes at one time. For example, the products with the pipe length of more than 2000MM, the 90-° bending position of less than 30MM and the pipe diameter of more than 16MM, which meet one of the conditions, are suitable to choose the single-ended pipe bender. The 90-degree single-end pipe bender has hydraulic, pneumatic and mechanical structure, suitable for bending copper pipe, iron pipe, stainless steel pipe, aluminum pipe and so on to meet customers' various choices.
型号
model
弯管长度/管径
Bending length/diameter
操作方式
operation
主轴转速
speed of mainshaft
电源
Power supply
气源
Air supply
尺寸
size
90°单端弯管机
90° single-end bender
任意长圆管/16MM内
Any length round pipe
单端
Single end
900-2100(rpm)
380V 50HZ 0.75KW
0.6Mpa
1200*800*1100
